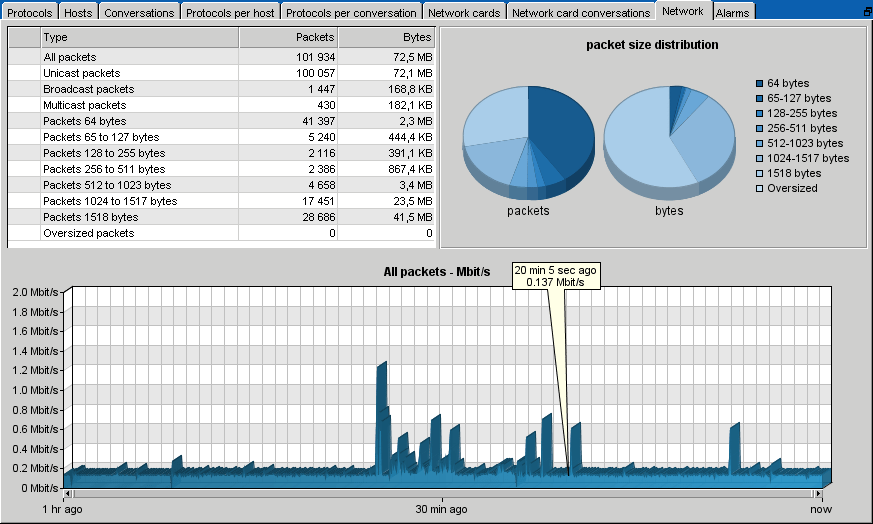

The network tab displays the total amount of traffic for all packets, the packet type distribution (unicast, multicast, and broadcast), and the packet size distribution.
packet size distribution - displays the distribution of the packet size. Move the mouse cursor over the pie elements to display detailed info about the size distribution.
network throughput - displays the network throughput in number of Kbit/s or Mbit/s up to the last interval period (default 2 hours). Move the mouse cursor across the chart to display the time and throughput at a specific time. The chart can be scrolled and zoomed.
Network popup menu
The network poup menu is displayed if you right click an entry.
Add alarm- this will let you add a alarm for this entry.
Show defined alarms for this entry - displays the defined alarms for this entry. The alarms tab will be displayed.
Show triggered alarms for this entry - displays the triggered alarms for this entry. The alarms tab will be displayed.
Delete alarm - deletes the clicked alarm entry.
