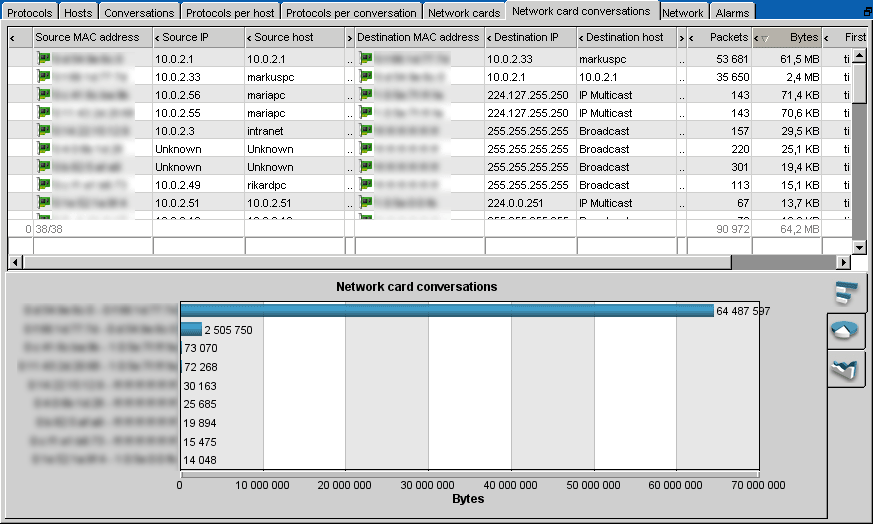

triggered alarm count - the triggered alarm count for this entry color coded by the highest severity of the triggered alarms.

source address - the hardware address (MAC address) of the network card sending data. Every network card in the world has a unique mac address.

source ip - the IP address of the host sending data.

source host - the name of the host sending data. This column is hidden and can be displayed by clicking the arrow in the column header.

source vendor - the name of the vendor who manufactured the card sending data. This column is hidden and can be displayed by clicking the arrow in the column header.

destination address - the hardware address (MAC address) of the network card receiving data. Every network card in the world has a unique mac address.

destination ip - the IP address of the host receiving data.

destination host - the name of the host receiving data. This column is hidden and can be displayed by clicking the arrow in the column header.

destination vendor - the name of the vendor who manufactured the card receiving data. This column is hidden and can be displayed by clicking the arrow in the column header.

first seen - the time when the network probe first discovered traffic between the network interfaces since the probe started or was reset.

last seen - the time when the network probe last saw traffic between the network interfaces since the probe started or was reset.

Add alarm- this will let you add a alarm for this entry.

Show defined alarms for this card conversation - displays the defined alarms for the clicked network card conversation. The alarms tab will be displayed.

Show triggered alarms for this entry - displays the triggered alarms for the clicked network card conversation. The alarms tab will be displayed.

Delete alarm - deletes the clicked alarm entry.
