Ethernet address filters

"Excluded" traffic is never picked up by the probe, while "included" traffic is always picked up, overriding any exclusion rule.

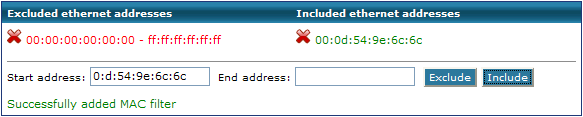

You can filter traffic on specific network cards or ranges of network cards, by adding the ethernet (MAC) address. For a single network card, add the ethernet address in one of the fields. For a range, add the start and stop address. The below image shows how to exclude all traffic.

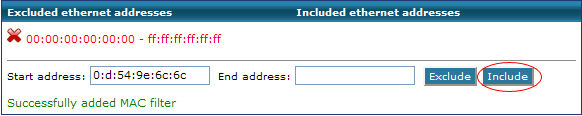

We want to include address going through our router, which has the address 0:d:54:9e:6c:6c

To delete a rule, simply click the red delete icon.
